CO2-Laser power controller
Print  this frame

10.6 µm laser power controller

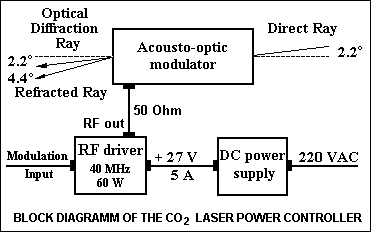

  includes the following units: Ge based ACOUSTO-OPTIC MODULATOR; RF DRIVER and DC POWER SUPPLY:



Item Units MT-4201 custom made
  Wavelength µm 10.6 µm please specify
  Input Optical Aperture mm 8.0 please specify
  Light beam divergence sec up to 30' -
  Output beam separation deg 4.41 -
  Light beam power W up to 150.0 -
  VSWR - < 1.2 -
  Driving RF power W 60.0 -
  Efficiency % > 85 -
  Transmission % > 88 -
  Cooling water flow rate l/min 1.5 -
  Upper temperature limit of cooling water °C 30 -
